SP Brilliant Ultra III Series

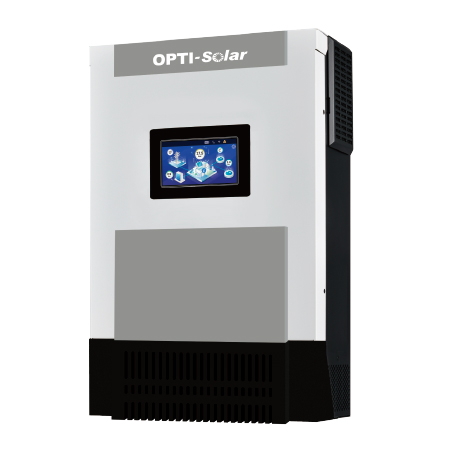

SP Brilliant Ultra III 6K
SP6000 Brilliant Ultra III supports the PV power up to 9000W, User-friendly HMI wide screen.
- PV power 9000W
- Selectable charging current based on applications
- Configurable AC/Solar charging priority

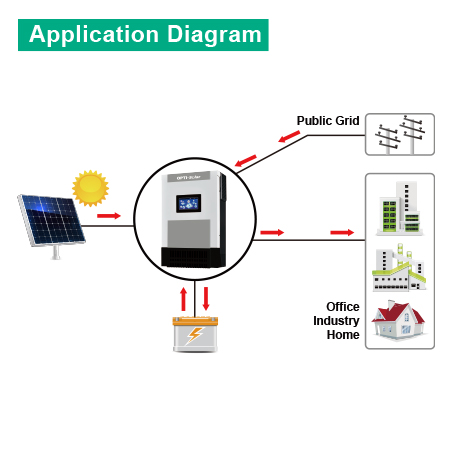

- Compatible to mains voltage or generator power
- 4.3" HMI LCD design
- Built-in Wi-Fi & BMS function
- Dual Output Design
- Support 9 unit in Parallel operation
- No-battery operation
| MODEL | SP6000 Brilliant Ultra III |
| Rated Power | 6500VA/6500W |
| INPUT | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) |
| 90-280 VAC (For Home Appliances) | |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| OUTPUT | |
| Maximum Output Power | 6500W with PV & Battery 6000W with Battery only |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 12000VA |
| Peak Efficiency | 93% |
| Transfer Time | 10 ms (For Personal Computers) |
| 20 ms (For Home Appliances) | |
| Waveform | Pure sine wave |
| Overload Capacity | 10s for 110%~150% load 5s for ≥150% load 100ms for ≥200% load |
| BATTERY | |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC (maximum 58Vdc) |
| Low Battery Alarm Voltage | 42 VDC |
| Shutdown Voltage | 40 VDC |
| Overcharge Protection | 66 VDC |
| Reverse Polarity Protection | Yes |
| SOLAR CHARGER & AC CHARGER | |
| Maximum PV Array Open Circuit Voltage | 500Vdc |
| PV Max. Input Power | 9000W |
| PV Max. Input Current | 27A |
| PV Array MPPT Voltage Range | 90~430Vdc |
| Maximum Solar Charging Current | 120A |
| Maximum AC Charging Current | 120A |
| Maximum Charging Current | 120A |
| PHYSICAL | |
| Dimension (D×W×H) | 120 x 295 x 468mm |
| Net Weight | 12kgs |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | 10°C - 55°C |
| Storage Temperature | -15°C - 60°C |
Specifications are subject to change without notice.
