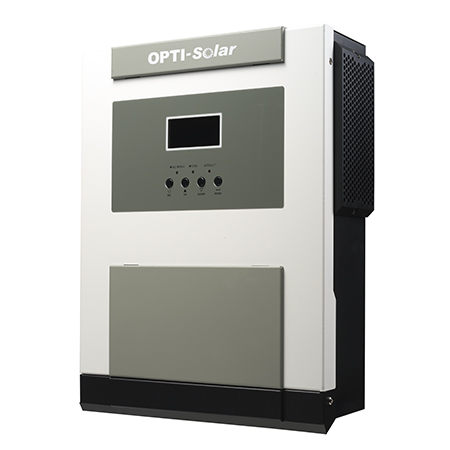

SP Handy Series
SP Handy 1.5K
- High PV input range
- Feasible for without-battery operation
- Pure sine wave inverter
- Selectable high power charging current
- Compatible to mains voltage or generator power
- Smart battery charger design for optimized battery performance
- Built-in solar charge controller
- Overload and short circuit protection
- Cold start function
- BMS & Wi-Fi function (option)
| MODEL | SP1500 Handy |
| Rated Power | 1600VA/1600W |
| INPUT | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) |
| 90-280 VAC (For Home Appliances) | |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 3200VA |
| Peak Efficiency | 93% |
| Transfer Time | 10 ms (For Personal Computers) |
| 20 ms (For Home Appliances) | |
| Waveform | Pure sine wave |
| BATTERY | |
| Battery Voltage | 12 VDC |
| Floating Charge Voltage | 13.5 VDC |
| Overcharge Protection | 16 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Maximum PV Input Power | 2000W |
| Maximum PV Input Current | 12A |
| Maximum PV Array Open Circuit Voltage | 500Vdc |
| PV Array MPPT Voltage Range | 60 ~ 450Vdc |
| Maximum Solar Charging Current | 80A |
| Maximum AC Charging Current | 80A |
| Maximum Charging Current | 80A |
| PHYSICAL | |
| Dimension (D × W × H) | 118 × 255 × 346mm |
| Net Weight | 6Kg |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10°C ~ 55°C |
| Storage Temperature | -15°C ~ 60°C |
Specifications are subject to change without notice.
