SP Premium Plus Series

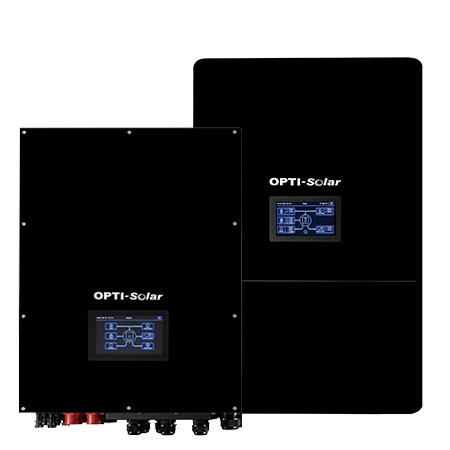

SP Premium Plus 10-50K
SP Premium Plus is the advanced model suitable for outdoor design.
It can be operated in a harsh environment condition, such as high humidity / high temperature (up to 60°C).
Long life span and less maintenance.
- IP66 enclosure
- User-friendly HMI LCD design
- Wi-Fi function for mobile APP monitoring
- BMS CAN & RS485 communication port
- Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
- Monitoring software for real-time status display and control
- Dual output for smart load management
- Dual input for smart load management for 10K, 30K & 50K models

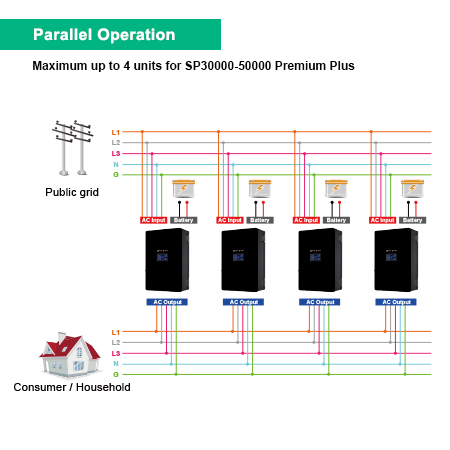

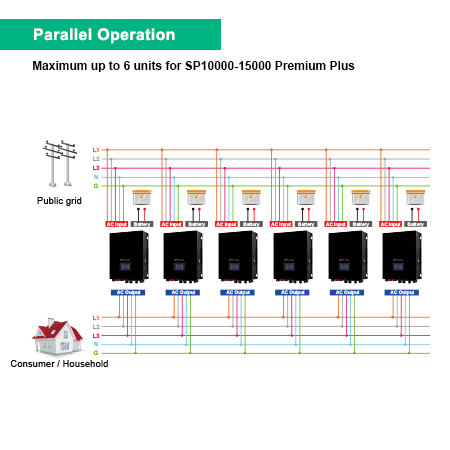

- Parallel operation up to 6unit for 10-15K models & 4 units for 30-50K models
Operation Diagram
| MODEL | SP10000 Premium Plus | SP15000 Premium Plus | SP30000 Premium Plus | SP50000 Premium Plus |
| Rated Output Power | 10KW | 15KW | 30KW | 50KW |
| Maximum Charging Power | 10KW | 15KW | 30KW | 50KW |
| PV INPUT (DC) | ||||
| Maximum DC Power | 15KW | 24KW | 48KW | 65KW |
| Nominal DC Voltage/ Maximum DC Voltage | 720 VDC / 900 VDC | 720 VDC / 1000 VDC | ||
| Start-up Voltage / Initial Feeding Voltage | 150 VDC / 150 VDC | 300 VDC / 350 VDC | ||
| MPP Voltage Range | 420 VDC ~ 850 VDC | 334 VDC ~ 850 VDC | 350 VDC ~ 900 VDC | |
| Number of MPP Trackers / Maximum Input Current | 2 / 18A | 2 / 36A | 3 / 36A | 4 / 36A |
| GRID OUTPUT (AC) | ||||
| Nominal Output Voltage | 230VAC* (P/N) / 400 VAC (P-P) | |||
| Output Voltage Range | 184-265 VAC per phase | |||
| Output Frequency Range | 47.5 ~ 51.5 Hz or 59.3 ~ 60.5 Hz | |||
| Nominal Output Current | 14.5 A per phase | 21.7 A per phase | 43.5 A per phase | 72.5 A per phase |
| Surge Rating | 170% Load for 10 sec. | |||
| THDI | ≤ 10% | |||
| Power Factor | 0.9 lag to 0.9 lead | |||
| EFFICIENCY | ||||
| Maximum Conversion Effiency (DC/AC) | 96% | 96.5% | ||
| European Efficiency@ nominal | 95% | 96% | ||
| AC INPUT | ||||
| AC Start-up Voltage / Auto Restart Voltage | 120-140 VAC per phase / 180 VAC per phase | |||
| Acceptable Input Voltage Range | 170-290 VAC per phase | 170-280 VAC per phase | ||
| Maximum AC Input Current | 14.5A per phase | 21.7A per phase | 43.5A per phase | 73A per phase |
| BATTERY MODE OUTPUT (AC) | ||||
| Nominal Output Voltage | 230VAC* (P/N) / 400 VAC (P-P) | |||
| Harmonic Distorion | ≤ 3% THD (Linear Load); ≤ 5% THD (Non-linear Load) | |||
| Efficiency (DC to AC) | 93% | 97% | ||
| BATTERY & CHARGER | ||||
| Nominal DC Voltage | 40 VDC ~ 60 VDC | 200 VDC ~ 900 VDC | ||
| Maximum Charging Current | 200A | 300A | 50A | 100A |
| PHYSICAL | ||||
| Dimension, D × W × H (mm) | 247 × 500 × 650 | 255 × 660 × 750 | 290 × 580 × 900 | |
| Net Weight (kgs) | 50 | 78 | 85 | 90 |
| INTERFACE | ||||
| Communication Port | RS-232 / USB / Wi-Fi / BMS (RS485 & CAN) | |||
| Intelligence Slot | Optional SNMP, GPRS, and Modbus cards available | |||
| PROTECTION & STANDARD | ||||
| Safety / EMC | IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-2/4, IEC 61683, IEC 62116, IEC 61727 | |||
| ENVIRONMENT | ||||
| Ingress Protection Rating | IP66 | |||
| Humidity | 0 ~ 90% RH (Non-Condensing) | |||
| Operating Temperature | -10°C to 55°C | |||
| Altitude | 0 ~ 1000 m** | |||
** Power derating 1% every 100m when altitude is higher than 1000m.
Specifications are subject to change without notice.
