SP Premium Series
SP Premium 5K
True Hybrid Solar Inverter with Energy Storage
SP Premium Series is a universal power supply tool for houses. It utilizes solar power in the daytime and feeding it to your appliances like illumination lamps, TV, stereo player, and PC equipment, saving extra power to the batteries for nighttime usage, and selling the power surplus, unused by the connected appliances, to the grid.
On cloudy days, when the solar power is weak, SP Premium Series will take the lacking power from the grid. At night, the batteries will provide energy to your home. With this true hybrid design, we give you the confidence that 100% of your solar power is fully utilized.
On cloudy days, when the solar power is weak, SP Premium Series will take the lacking power from the grid. At night, the batteries will provide energy to your home. With this true hybrid design, we give you the confidence that 100% of your solar power is fully utilized.
- On-grid inverter with energy storage
- Pure sine wave output
- To guarantee stable charging system
- Multiple operations: Grid-tie, Off-grid, and grid-tie with backup
- Built-in MPPT solar charger
- LCD panel for comprehensive information
- Multiple communications
- Green substitution for generators
- User-adjustable battery charging current
- Parallel connection capability (Maximum up to 6pcs)

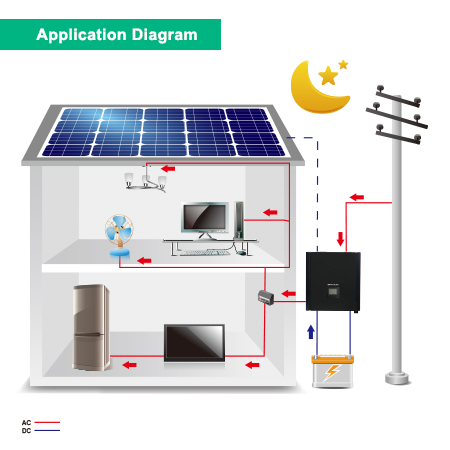

Operation Diagram
| MODEL | SP5000 Premium |
| RATED POWER | 5000 W |
| PV INPUT (DC) | |
| Maximum DC Power | 10000 W |
| Nominal DC Voltage | 720 VDC |
| Maximum DC Voltage | 900 VDC |
| Start-up Voltage / Initial Feeding Voltage | 225 VDC / 250 VDC |
| MPP Voltage Range | 250 VDC ~ 850 VDC |
| Maximum Input Current | 2×10 A |
| Isc PV (absolute maximum) | 25 A |
| Max. inverter back feed current to the array | 0 A |
| GRID OUTPUT (AC) | |
| Nominal Output Voltage | 230 VAC |
| Output Voltage Range | 184 - 265 VAC |
| Output Frequency Range | 47.5 ~ 51.5 Hz or 59.3~ 60.5Hz |
| Nominal Output Current | 21 A |
| Inrush Current/Duration | 21 A / 20ms |
| Maximum Output Fault Current/Duration | 52 A / 1ms |
| Maximum output Overcurrent Protection | 52A |
| Power Factor Range | 0.9 lead – 0.9 lag |
| AC INPUT | |
| AC Start-up Voltage | 120-140 VAC |
| Auto Restart Voltage | 180 VAC |
| Acceptable Input Voltage Range | 170 - 280 VAC |
| Nominal Frequency | 50 Hz / 60 Hz |
| AC Input Power | 5000VA/5000W |
| Maximum AC Input Current | 40 A |
| Inrush Input Current | 40 A |
| BATTERY MODE OUTPUT (AC) | |
| Nominal Output Voltage | 230 VAC |
| Output Frequency | 50 Hz / 60 Hz (auto sensing) |
| Output Waveform | Pure sine wave |
| Output Power | 5000VA/5000W |
| Output Current | 21A |
| Efficiency (DC to AC) | 93% |
| BATTERY & CHARGER | |
| Nominal DC Voltage | 48 VDC |
| Maximum Battery Discharging Current | 150 A |
| Maximum Charging Current | 100 A |
| PHYSICAL | |
| Dimension (D×W×H) | 204.2 × 460 × 600 mm |
| Net Weight | 29 kg |
| INTERACE | |
| Communication Port | RS-232/USB |
| Intelligent Slot | Optional SNMP, Modbus and AS-400 cards available |
| ENVIRONMENT | |
| Protective Class | I |
| Ingress Protection Rating | IP20 |
| Humidity | 0 ~ 90% RH (No condensing) |
| Operating Temperature | -10 to 55°C |
| Altitude | 0 ~ 1000 m* |
Product specifications are subject to change without further notice.
*Power derating 1% every 100 m when altitude is higher than 1000m.
