SP Premium Series
SP Premium 10K-15K
True Hybrid Solar Inverter with Energy Storage
SP Premium Series is a universal power supply tool for houses. It utilizes solar power in the daytime and feeding it to your appliances like illumination lamps, TV, stereo player, and PC equipment, saving extra power to the batteries for nighttime usage, and selling the power surplus, unused by the connected appliances, to the grid.
On cloudy days, when the solar power is weak, SP Premium Series will take the lacking power from the grid. At night, the batteries will provide energy to your home. With this true hybrid design, we give you the confidence that 100% of your solar power is fully utilized.
SP Premium Series is a universal power supply tool for houses. It utilizes solar power in the daytime and feeding it to your appliances like illumination lamps, TV, stereo player, and PC equipment, saving extra power to the batteries for nighttime usage, and selling the power surplus, unused by the connected appliances, to the grid.
On cloudy days, when the solar power is weak, SP Premium Series will take the lacking power from the grid. At night, the batteries will provide energy to your home. With this true hybrid design, we give you the confidence that 100% of your solar power is fully utilized.
- 10/15KW on-grid inverter with energy storage
- Pure sine wave output
- To guarantee stable charging system
- Multiple operations: Grid-tie, Off-grid, and grid-tie with backup
- Built-in MPPT solar charger
- LCD panel for comprehensive information
- Multiple communications
- Green substitution for generators
- User-adjustable battery charging current
- Parallel connection capability (Maximum up to 6pcs)

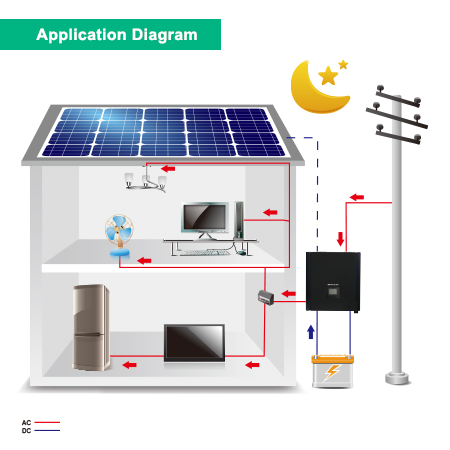

Operation Diagram
| MODEL | SP10000 Premium | SP15000 Premium |
| RATED POWER | 10000 W | 15000 W |
| PV INPUT (DC) | ||
| Maximum DC Power | 14850 W | 22500 W |
| Nominal DC Voltage | 720 VDC | 720 VDC |
| Maximum DC Voltage | 900 VDC | 900 VDC |
| Start-up Voltage / Initial Feeding Voltage | 320 VDC / 350 VDC | 320 VDC / 350 VDC |
| MPP Voltage Range | 400 VDC ~ 800 VDC | 400 VDC ~ 800 VDC |
| Maximum Input Current | 2×18.6 A | PV1: 37.2A; PV2: 18.6A |
| Isc PV (absolute maximum) | 25 A | 50 A |
| Max. inverter back feed current to the array | 0 A | 0 A |
| GRID OUTPUT (AC) | ||
| Nominal Output Voltage | 230 VAC (P-N) / 400 VAC (P-P) | 230 VAC (P-N) / 400 VAC (P-P) |
| Output Voltage Range | 184 - 265 VAC per phase | 184 - 265 VAC per phase |
| Output Frequency Range | 47.5 ~ 51.5 Hz or 59.3~ 60.5Hz | |
| Nominal Output Current | 13A per phase | 21.7A per phase |
| Inrush Current/Duration | 17A per phase / 20ms | 28A per phase / 20ms |
| Maximum Output Fault Current/Duration | 51A per phase / 1ms | 65A per phase / 1ms |
| Maximum output Overcurrent Protection | 51A per phase | 65A per phase |
| Power Factor Range | 0.9 lead – 0.9 lag | |
| AC INPUT | ||
| AC Start-up Voltage | 120-140 VAC per phase | 120-140 VAC per phase |
| Auto Restart Voltage | 180 VAC per phase | 180 VAC per phase |
| Acceptable Input Voltage Range | 170 - 280 VAC per phase | 170 - 280 VAC per phase |
| Nominal Frequency | 50 Hz / 60 Hz | 50 Hz / 60 Hz |
| AC Input Power | 10000VA/10000W | 15000VA/15000W |
| Maximum AC Input Current | 25 A | 40 A |
| Inrush Input Current | 25 A | 40 A |
| BATTERY MODE OUTPUT (AC) | ||
| Nominal Output Voltage | 230 VAC (P-N) / 400 VAC (P-P) | 230 VAC (P-N) / 400 VAC (P-P) |
| Output Frequency | 50 Hz / 60 Hz (auto sensing) | |
| Output Waveform | Pure sine wave | |
| Output Power | 10000VA/10000W | 15000VA/15000W |
| Output Current | 13A per phase | 21.7A per phase |
| Efficiency (DC to AC) | 91% | |
| BATTERY & CHARGER | ||
| Nominal DC Voltage | | |
| Maximum Battery Discharging Current | 250 A | 375 A |
| Maximum Charging Current | 200 A | 300 A |
| PHYSICAL | ||
| Dimension (D×W×H) | 622 × 500 × 167.2 mm | 210 × 650 × 820 mm |
| Net Weight | 45 kg | 62 kg |
| INTERACE | ||
| Communication Port | RS-232/USB | |
| Intelligent Slot | Optional SNMP, Modbus and AS-400 cards available | |
| ENVIRONMENT | ||
| Protective Class | I | |
| Ingress Protection Rating | IP20 | |
| Humidity | 0 ~ 90% RH (No condensing) | |
| Operating Temperature | -10 to 55°C | |
| Altitude | 0 ~ 1000 m* | |
Product specifications are subject to change without further notice.
*Power derating 1% every 100m when altitude is higher than 1000m.
*Power derating 1% every 100m when altitude is higher than 1000m.
